BINWEIGH 03

Real-Time Pay-By-Bin Billing

Pay-by-Weigh is an important process in the domestic and commercial waste collection market. Accurate data collected by weighing equipment allows waste operators to charge individual customers based on the weight of the bins.

BinWeigh 03 system is the class leader solution for waste and recycling operators, where collecting and processing wheelie bin lift data in real-time is crucial. The system combines our proven weighing hardware with modern cloud services, supported by in-house developed software that features real time data analysis, optimized ROI and execute direct billing at a competitive price point.

This is the reason VPG Onboard Weighing is a market leader in legal-for-trade vehicle onboard weighing applications in home and export markets.

Pay-by-weight solutions allow domestic and commercial waste operators to charge customers by the weight of refuse collected, leading to fairer, more dynamic, more attractive pricing. Most systems - including VPG Onboard Weighing’s LFT1500 product - rely on weighing material once it has been loaded into the hopper.

Our BinWeigh 03 system offers something different - a ‘pay-by-bin’ solution which dynamically weighs material collected in a wheelie bin as it is lifted, before it is tipped into the truck, and instantly transfers load data over the air via the cloud for direct billing. Priced competitively to offer rapid ROI, BinWeigh 03’s innovative approach underlines VPG Onboard Weighing’s position as a market leader in legal-for-trade weighing applications both in the UK and internationally.

Dynamic Weighing for Wheelie Bin Collection Vehicles

The BinWeigh 03 system is legal-for-trade certified to Class Y(b) on wheelie bin collection vehicles, meeting the strict accuracy standards required for pay-by-weight billing. Combining VPG Onboard Weighing’s proven weight sensor technology with a modern cloud-based software platform, BinWeigh 03 processes weight, collection and client data simultaneously for each bin while collection is still in progress.

Transferring this data together in real time to the cloud platform streamlines and speeds up billing and account administration. An upgrade option for existing BinWeigh 02 systems furthermore allows existing customers to take advantage of this cutting edge, dynamic approach to pay-by-weight for wheelie bins.

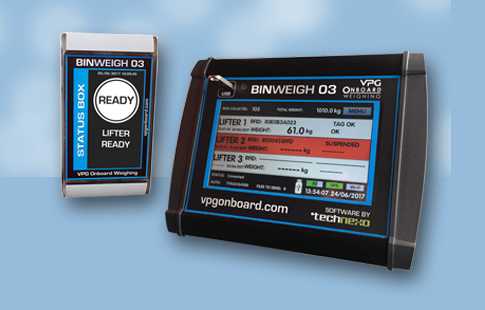

BinWeigh products image
Readouts image

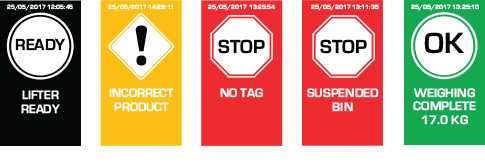

Examples of credit control and weighing messages displayed on rear status box display during a bin lift

Real-Time Credit Control at Lifting Station

The BinWeigh 03 system is continously connected to the GSM network, up to 4G speed, enabling seamless over the air data transfer for real-time credit control and optional further cloud based backoffice services, including geolocation, billing and more.

The RFID chip in the bin gets checked against the authorization list of the collection agency and automatically blocks unauthorized bins from been lifted. A separate display at the lift station of the vehicle shows clear status screens at the same time. Examples of credit control and weighing messages displayed on rear status box display during a bin lift can be seen on the image nearby.

A client hasn’t paid their last collection bill? BinWeigh 03 lets drivers see the credit status of each customer before they pick their next bin. The BinWeigh 03 system makes use of RFID chips in each wheelie bin to identify each client. These chips also mean each bin can be checked against a customer authorisation list before being emptied.

The BinWeigh 03 system is continuously connected to the GSM (mobile) network, transferring and receiving data at up to 4G speed, so operators always get the benefit of up-to-date credit control information as they do their rounds. If an overdue payment comes in, the authorisation data available to vehicle operators can be updated in a matter of minutes.

>Contact a BinWeigh 03 Expert

Highlights



Real-Time 4G Wireless Data Transfer

Waste vehicle lifters equipped with the BinWeigh 03 system are continously connected to the GSM network, enabling seamless operation. The system accesses the fastest speed available by the GSM service provider in the vehicle’s current location.



Real-Time Credit Control

The BinWeigh 03 system enables continuous status updates to the full authorization list of all bins belonging to the collection agency. This feature enables real-time accuracy of allowed vs. blocked bins and enhances customer service and satisfaction. When a domestic or commercial customer pays their wheelie bin collection service provider, the customer’s bins can be emptied in as little as the next two minutes. Time is dependent on how often the customer management database is updated. In real time, the lorry transfers the lift information after each bin collection is complete.



In-Cab Indicator with 7˝ Touch Screen

A large 7˝ touch screen displays important information about the current condition of the BinWeigh 03 system, the bin currently being lifted, the RFID number, the weight of the bin, the working status of each lifter and the credit control status, i.e., suspended bin.



4.3˝ LCD Lifter Status Box display

An environmentally protected, rugged and bright second display is mounted right at the lift station at the exterior of the vehicle, showing the status of every bin clearly. Status gets updated in real-time with over the air data transfer using mobile network.



Proactive Hardware Failure Alert

Our proactive hardware failure alert feature is designed to minimize downtime. Each BinWeigh 03 system component is continuously monitored to ensure its condition is fully operational. In the event of a hardware failure, the vehicle sends a status report alert to the cloud service, and an email message is sent to relevant personnel to respond in real time to the issue. Email alerts assignments can be customized according to customer requirements, e.g., dedicated VPG engineer, dedicated mechanic, fleet manager, etc. This unique feature distinguishes the BinWeigh 03 system from any other system and sets new industry standards.



Configurable for Split Body Vehicles

The BinWeigh 03 system can be configured for split body vehicles, with the ability to prevent incorrect product from being emptied into the wrong compartment.



In-Cab Indicator with 7˝ Touch Screen

The BinWeigh 03 system comes with a large 7” touchscreen for in-cab mounting that gives operators access to a wide range of data, including the current condition of the BinWeigh 03 system, the working status of each lifter, who the bin currently being lifted belongs to, up-to-the-minute credit status, the weight of the bin and much more.



4.3˝ LCD Lifter Status Box display

A durable environmentally protected second display is mounted at the lift station at the rear of the vehicle, showing the status of every bin for extra convenience. Status data gets updated in real-time with over the air wireless data transfer via the mobile network.



Proactive Hardware Failure Alert

Each BinWeigh 03 system component is continuously monitored to ensure its condition is fully operational. In the event of a hardware failure, the vehicle sends a status report via the cloud. Reports can be configured to trigger an email to chosen personnel, e.g. a VPG engineer, authorised mechanic, fleet manager etc. This unique proactive monitoring feature is designed to minimize downtime and distinguishes the BinWeigh 03 system from any other product on the market, setting a new industry standard.

binweigh image



Configurable for Split Body Vehicles

The BinWeigh 03 system can be configured for split body vehicles, with the ability to prevent materials being emptied into the wrong compartment. This is a highly useful feature for waste separation and recycling collection



Features & Benefits

  • Dynamic weighing of wheelie bins
  • RFID bin identification (125 or 134.2 kHz)
  • Real-time 4G wireless data transfer
  • Multi-language 7" LCD in-cab indicator
  • Multi-language 4.3" LCD rear status boxes
  • Encrypted CAN bus
  • Encrypted 4G wireless communication
  • Geo coordinates of bins collected
  • Cloud portal business suite
  • Auto stop of unauthorized bins
  • Split vehicle product enforcement
  • Real-time bin credit control
  • Proactive hardware failure alert system via email
  • Real-time cloud portal vehicle hardware monitoring
  • Cloud server data backup
  • USB pendrive data backup



| BinWeigh 03 Product Sheet



UPGRADE OPTION: It is possible to upgrade from your current BinWeigh 02 System



  • Dynamic pay-by-weight solution for wheelie bins
  • Legal-for-trade certified
  • RFID bin identification (125 or 134.2 kHz)
  • Real-time credit control - auto block on unauthorised bins
  • Encrypted 4G wireless data transfer
  • Multi-language 7" LCD in-cab indicator
  • Multi-language 4.3" LCD rear status boxes
  • Encrypted CAN bus
  • Geolocation data
  • Cloud portal business suite
  • Split vehicle material sorting
  • Real-time vehicle hardware monitoring
  • Proactive hardware failure alert system
  • Cloud server data backup
  • USB pendrive data backup



| BinWeigh 03 Product Sheet



UPGRADE OPTION: It is possible to upgrade from your current BinWeigh 02 system to BinWeigh 03
