BulkWeighOnboard weighing for bulk tippers and trailers.

Four load cells on the chassis give your driver gross weight, payload and every axle weight in the cab, accurate to ±1% GVW. Alarms warn of overloads and unsafe tipping before they happen.




±1% GVW
accuracy or better
17 to 50 t
gross vehicle weight range
100,000+
BulkWeigh installations worldwide
2 years
full warranty, parts and labour


Load optimisation built for bulk haulage

BulkWeigh is a vehicle-mounted weighing system for tipper trucks and trailers. It tells the driver exactly what is on board while loading, on the road and when tipping, so every run carries a full legal load and nothing more.

The system is sealed to marine industry standards and built for quarries, building sites and farm yards. Drivers, owners and fleet managers use it to cut wasted trips, avoid overload fines and keep tipping safe on uneven ground.

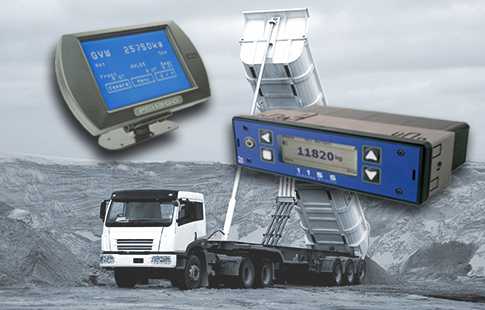

BulkWeigh in-cab weight indicator and load cell for tipper trucks
How BulkWeigh works

Weight and stability checks through the whole tipper cycle

Four load cells mounted on the vehicle send their readings to a junction box, which also holds a high-accuracy inclinometer. The in-cab indicator turns this into gross vehicle weight, net payload and individual axle weights.

On-screen readings, alerts and audible alarms keep the driver informed during loading, transport and unloading. That raises safety standards on site and keeps the vehicle compliant on the road.

From the loading shovel to an empty body

Load Axle weights update live as the body fills
Check Overload alert before the legal limit is passed
Tip TipWatch checks ground slope and load balance
Lower Body-Up alarm if the body is still raised

TipWatch sounds an alarm if the side-to-side slope is more than 3 degrees or the load is more than 40% off centre, so the driver can stop before the vehicle becomes unstable.

BulkWeigh highlights

Axle weights, tipping safety and trailer swaps handled as standard, with a choice of indicator for the cab.

AxleWatch

Shows each axle weight in real time, so the driver can spread the load evenly and stay inside axle limits.

TipWatch tipping stability

Our award-winning stability feature, included as standard. It combines ground and chassis angle with load distribution and raises an alarm before an unsafe tip.

Body-Up alert

An audible alarm and on-screen message tell the driver if the tipper body is still raised.

Automatic trailer identification

When a trailer is coupled, the tractor indicator recognises its weighing system straight away. No recalibration, so swap-overs stay quick.

Two indicator options

The compact 1155 fits a DIN radio slot, the dash or the trailer chassis. The 1300 adds a 6.4 inch colour touch screen and up to three cameras.

Weights away from the cab 1155

Read weights outside the vehicle with the 511 FreeWeigh handheld, or on a phone or tablet over WiFi with VPG Connect.

Tipper truck with BulkWeigh tipping bulk material on site
Where it works

Onboard weighing for tipper rigids, semi-trailers and drawbars

BulkWeigh suits bulk tipping vehicles from 17 to 50 tonnes GVW. Operators use it to haul aggregates, quarry products, bulk powders and animal feed, where loads vary and site ground is rarely level.

Drivers see the weight as the shovel loads, so they can stop at the right point or ask for a top-up without a trip to the weighbridge.

Fitted as an OEM option by UK tipper body builders for more than 10 years.

Features and benefits

What the system gives you

Accuracy of ±1% GVW or better from 17 to 50 tonnes
Gross weight, net payload and individual axle weights
Visual and audible overload alerts, with a built-in speaker
TipWatch stability and Body-Up alarms as standard
Automatic trailer identification
User-defined display and custom alert settings
CAN bus and analogue load cell interface, RS232 output
Thermal or heavy duty printer with custom print header

What your business gets out of it

Full legal payload on every run
Fewer overload fines and roadside stops
Safer tipping on soft or sloping ground
Even axle loading and less wear on tyres and suspension
Quick trailer swap-overs with no recalibration
Fewer trips to the weighbridge
Reliable readings in wet, dusty and rough conditions
Two years of cover on parts and labour

BulkWeigh technical summary

Vehicle types Bulk tipping rigids, semi-trailers and drawbar combinations
Vehicle weight range 17 to 50 tonnes GVW
Accuracy ±1% GVW or better
Sensors 4 vehicle-mounted load cells, junction box with inclinometer
Readings Gross vehicle weight, net payload, individual axle weights
Safety alerts Overload, TipWatch tipping stability, Body-Up, with visual and audible alarms
Indicators 1155 (DIN radio, dash or trailer chassis mount); 1300 (dash mount, 6.4 inch colour TFT touch screen)
Cameras 1300 only: 3 PAL reversing camera inputs, each with audio
Communications CAN bus or analogue load cell interface, RS232 output
Operating voltage 12 to 32 V
Build Waterproofed to marine industry standards for harsh sites
Options Thermal or heavy duty printer with custom print header, remote displays, external sounders, 511 FreeWeigh handheld, VPG Connect (1155)
Warranty 2 years, parts and labour

BulkWeigh questions answered

The basics of weighing a bulk tipper. For more detail, see the full FAQ.

Read the BulkWeigh FAQ

What is BulkWeigh?

BulkWeigh is an onboard weighing and overload protection system for bulk tipper trucks and trailers, made by VPG Onboard Weighing. Load cells mounted on the vehicle measure gross vehicle weight, net payload and individual axle weights, and an in-cab indicator warns the driver before the vehicle is overloaded or unsafe to tip.

How accurate is BulkWeigh?

BulkWeigh is accurate to ±1% of gross vehicle weight (GVW) or better, using four vehicle-mounted load cells.

Which vehicles is BulkWeigh designed for?

It is built for bulk tipping rigid trucks, semi-trailers and drawbar combinations from 17 to 50 tonnes GVW. Typical users haul aggregates, quarry products, bulk powders and animal feed.

What does TipWatch do?

TipWatch is a tipping stability feature included as standard. An inclinometer in the junction box measures the angle of the chassis or body and combines it with load distribution data. If the side-to-side slope is more than 3 degrees, or the load is more than 40% off centre, an alarm sounds and a warning shows on the indicator.

Does the system need recalibrating when a trailer is swapped?

No. When a trailer is coupled, the indicator on the tractor automatically identifies the VPG Onboard Weighing system on that trailer, so no recalibration is needed.

What is the difference between the 1155 and 1300 indicators?

The 1155 is a compact digital indicator that fits a DIN radio slot, the dash or the trailer chassis. The 1300 is a dash-mounted unit with a 6.4 inch colour touch screen, advanced tipping stability controls and inputs for up to three cameras for rear view and blind-spot monitoring.

Can drivers check the weight away from the cab?

Yes. The optional 511 FreeWeigh handheld display lets the driver read weights from outside the cab. Systems with the 1155 indicator also work with VPG Connect, which sends weight data over WiFi to a smartphone or tablet.

What warranty comes with BulkWeigh?

BulkWeigh comes with a two-year full warranty covering parts and labour.

VPG Onboard Weighing quality shield
“

We have installed BulkWeigh as an OEM option for over 10 years and now fit more than 350 VPG Onboard Weighing systems a year. They are easy to install and very reliable.

Vito RonzanoManaging Director, Wilcox Commercial Vehicles Ltd, UK

Two years, parts and labour

Every BulkWeigh system carries a two-year full warranty. VPG Onboard Weighing, part of Vishay Precision Group, designs and builds its own load cells and indicators.

Load every tipper to the limit, safely.

Tell us about your rigids, trailers and the work they do. We'll recommend the right BulkWeigh setup, or arrange a proof-of-concept on your own vehicles first.
