Vehicles / Sweepers

Road sweeper weighing that knows when the hopper is really full.

Sweepers collect more dirt and debris, faster, than most people realise. Onboard weighing keeps every sweeper within legal limits and only sends it back to base when it is genuinely at capacity.





Cleaner streets, without the overload risk.

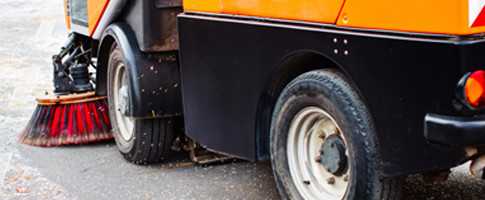

Road sweepers keep towns and cities livable, and today most of them run with an on-vehicle weighing system. For municipal street cleaning teams and private utility services alike, load monitoring prevents overloading, reduces wear, tear and maintenance bills, and cuts unnecessary trips back to the depot. VPG Onboard Weighing supplies systems for sweepers large and small.


Weight vs. Volume

Why a half-full hopper can already be overweight.

The volume and weight of debris a sweeper collects is unpredictable from route to route, so judging the load by volume alone is risky: safe and legal limits can be reached long before the hopper appears full.

Measuring weight works in both directions. It protects the vehicle and the driver from overloading, and it stops sweepers from heading back to unload while they could still collect more. Fewer trips, more kerb covered per shift.

“

Most clients who took part in the trial said VanWeigh and TruckWeigh systems helped them avoid overload endorsements, as well as maximise payload capacity and reduce vehicle wear & tear.

National Sales Account ManagerBody builder for utility vehicles, UK
Load Monitoring Technology

Overload protection and efficiency in one system.

VPG offers two proven approaches to sweeper weighing. Choose robust overload warnings, or go further with continuous load cell precision that feeds directly into route planning.

Inclinometer overload protection

Our patented inclinometer-based systems monitor each individual axle and the gross weight against defined limits, giving a reliable warning before those limits are reached.

Load cell precision

Load cell-based systems track the payload in real time with pinpoint accuracy, so you always know exactly how much the sweeper is carrying.

Time to capacity

Load cell data can be used to calculate time to capacity as the shift goes on, helping you plan and adjust route schedules for maximum efficiency.

Weighing systems for street sweepers

From compact sweepers on a 7.5-tonne chassis to heavy multi-axle trucks, there is a system matched to the vehicle and the job.

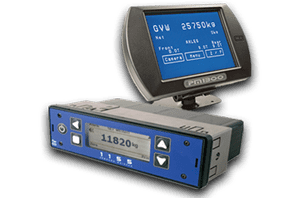

WasteWeigh

Rugged load cell-based weighing for vehicles from 17 tonnes upwards. Continuous precision to ±0.5% GVW or better, with individual axle monitoring, packer plate shutdown and camera support.

Learn more →

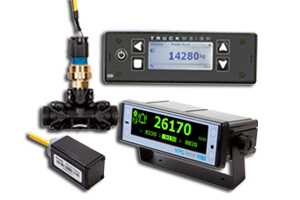

TruckWeigh®

Fit-and-forget overload protection built on VPG's lightweight inclinometer technology. Accurate to better than ±2.5% (90 to 100% GVW), for any number of axles and unlimited vehicle weights.

Learn more →

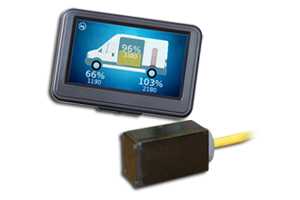

VanWeigh®

Purpose-built load monitoring for dual-axle vehicles up to 7.5 tonnes. Patented inclinometer technology, all suspension types, accuracy better than ±2.5% (90 to 100% GVW) and simple to install and maintain.

Learn more →

Find the right weighing system for your sweeper fleet.

Tell us about your vehicles and routes, and we'll recommend WasteWeigh, TruckWeigh or VanWeigh.
