LFT1500Legal-for-trade onboard weighing for invoicing from the cab.
Weigh at the point of collection and bill your customer on the spot. LFT1500 is approved to OIML R76 and accurate to 20 kg in 15,000 kg.
Approved trade invoicing from the cab
If your business charges by weight, your invoices are only as good as the weighing system behind them. LFT1500 from VPG Onboard Weighing is a legal-for-trade onboard weighing system, approved to OIML R76, the international standard for the accuracy of non-automatic weighing equipment.
Pay-by-weight systems have to meet strict standards for accuracy, reliability and repeatability before they can be certified, so few onboard products hold this approval. LFT1500 does. Drivers can weigh at the point of collection and raise the invoice there and then, which makes billing faster and easier to manage.

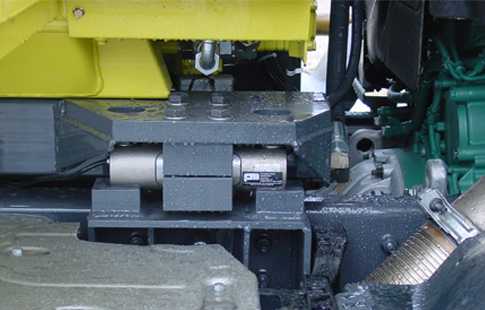

Load cells between chassis and body, corrected for tilt
LFT1500 uses four, six or eight load cells mounted between the vehicle chassis and the body. Each cell handles up to 22,000 kg.
A flexible mounting bracket, unique to LFT1500, works with an inclinometer on the chassis to compensate for tilt of up to 10 degrees. That is how the system holds its accuracy when a truck is parked on a slope at a customer's site.
Every weight is recorded on the optional data storage device, so each charge can be traced back to the lift or load it came from.
LFT1500 highlights
Certified weighing, a clear cab display, and the options you need to turn a weight into a bill.
Certified pay-by-weight
Compliant with OIML R76 Class III and IIII, giving you an approved legal-for-trade basis for invoicing from the cab.
High load capacity
Each load cell takes up to 22,000 kg, in configurations of four, six or eight cells.
Accurate on uneven ground
High-capacity cells, flexible mounting and a chassis inclinometer deliver 20 kg in 15,000 kg, with tilt compensation up to 10 degrees.

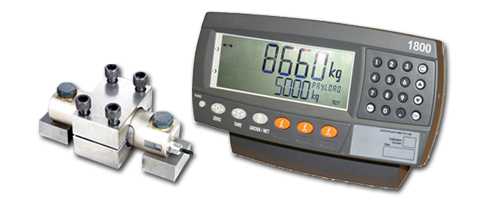

Clear 1800 in-cab indicator
A backlit LCD with large, easy-to-read characters. Run totals for multi-drop rounds and custom print headers come as standard.
Telematics and data transfer
Telematics output as standard, with Bluetooth, USB storage and an electronic data storage device (DSD) available.
Printers, scanners and handheld display
Choose from a range of printers, add a barcode scanner, or give the operator a 511 FreeWeigh handheld display.
Pay-by-weight for waste, recycling and bulk haulage
Any operator that charges by weight can use LFT1500 to bill at the point of collection or delivery. It is most often fitted to waste and recycling fleets and to bulk haulage vehicles.
Because the system is certified, the weight on the ticket is the weight you can charge for. No trip to a weighbridge, no estimate to argue over later.
OIML R76 approved to Class III and IIII.
Features and benefits
LFT1500 technical summary
| Approval | OIML R76, Class III and Class IIII |
|---|---|
| Accuracy | 20 kg in 15,000 kg |
| Load cells | 4, 6 or 8, mounted between chassis and body |
| Capacity per load cell | 22,000 kg |
| Tilt compensation | Up to 10 degrees, via chassis inclinometer and flexible mounting brackets |
| Indicator | 1800 in-cab indicator, backlit LCD, run totals, custom print headers |
| Outputs and data | Telematics output as standard; Bluetooth, USB and data storage device (DSD) available |
| Options | Printers, barcode scanner, 511 FreeWeigh handheld display |
LFT1500 questions answered
The basics of legal-for-trade onboard weighing. For more detail, see the full FAQ.
Read the LFT1500 FAQWhat does legal for trade mean for onboard weighing?
A legal-for-trade weighing system meets the accuracy, reliability and repeatability standards needed for its readings to be used as the basis for charging customers. LFT1500 is approved to OIML R76, so the weight shown in the cab can be used to invoice by weight.
What is OIML R76?
OIML R76 is the international recommendation that sets accuracy requirements for non-automatic weighing instruments. LFT1500 is approved to Class III (medium accuracy) and Class IIII (ordinary accuracy).
How accurate is LFT1500?
LFT1500 is accurate to 20 kg in 15,000 kg. A chassis-mounted inclinometer and flexible mounting brackets compensate for tilt of up to 10 degrees.
Which vehicles can LFT1500 be fitted to?
LFT1500 suits refuse collection vehicles, tankers, cement trucks, tippers, hook loaders and skip loaders, in waste, recycling and bulk haulage.
Can LFT1500 print tickets and send data to telematics?
Yes. The 1800 indicator has a telematics output as standard and supports a choice of printers, a data storage device, USB storage, a barcode scanner and Bluetooth data transfer.
Product sheet and resources
Download the LFT1500 product sheet, or find manuals for the full VPG Onboard Weighing range.
Browse all manuals
Weighing you can invoice against
Few onboard weighing products are approved for trade. LFT1500 holds OIML R76 approval to Class III and IIII, backed by VPG Onboard Weighing, part of Vishay Precision Group.
Specified for your vehicles
Four, six or eight load cells, a choice of printers and data options. Our team will match the configuration to your bodies, routes and billing process.
Start invoicing by weight from the cab.
Tell us about your vehicles, bodies and how you bill today. We'll recommend the right LFT1500 setup, or arrange a proof-of-concept on your own trucks first.
